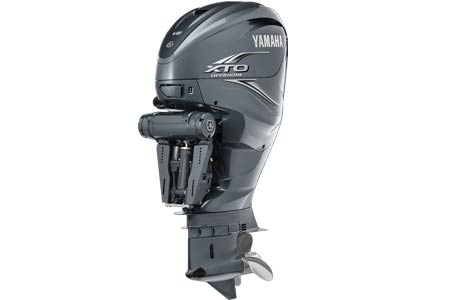

Yamaha XTO Offshore Motor

V8 5.6L 425 HP

ENGINE TYPE: V8 / DOHC / 32 valves / 4 Valves per Cylinder
DISPLACEMENT: 5.6L
BORE x STROKE: 3.78 x 3.78 in (96 x 96 mm)
PROP SHAFT HORSEPOWER: 425 HP at 5500 RPM
FULL THROTTLE RPM RANGE: 5000 - 6000 RPM
ALTERNATOR OUTPUT at W.O.T.: 90 Amp Gross, Max
COMPRESSION RATIO: 12.2:1
FUEL INDUCTION SYSTEM: Direct Injection / Up To 2900 PSI
WEIGHT: 952 lbs (432 kg) / 977 lbs (443 kg) / 999 lbs (453 kg)
RECOMMENDED FUEL: Octane 89
RECOMMENDED ENGINE OIL: Yamalube 4M (See Owner's Manual)
RECOMMENDED FUEL FILTRATION: Yamaha 10-Micron Fuel / Water Separating Filter (External)
C.A.R.B. RATING: 3-Star
EXHAUST: Through Propeller (Except in Reverse Under 2500 RPM)
INTAKE: 32
IGNITION: TCI Microcomputer
SPARK PLUG: ILMAR7E-9 / Iridium
STARTING SYSTEM: Electric w/ PTT
LUBRICATION: Wet Sump
ENGINE OIL CAPACITY: 7.8L / 8.2 Quarts | 7.5L / 7.9 Quarts
RECOMMENDED COOLING: Thermostatic Control
ETHANOL BLEND LIMIT: 10% Maximum
GEAR RATIO: (25/14) 1.79
GEAR SHIFT: Forward, Neutral, Reverse
SHAFT LENGTH: 25" - 30" - 35"
DEGREE OF TILT: -4° through +73°
DEGREE OF TRIM: -4° through +16°
DRY WEIGHT: 25" shaft / 432 kg (952 lbs) ; 30" shaft / 443 kg (977 lbs; 35" shaft / 453 kg (999 lbs)
MOUNTING CENTERS: 28.5"
STEERING: Integrated, Electric Actuation
STEERING ANGLE (Maximum): 31° From Center, Either Direction
WARRANTY: Limited 5-Year Pleasure, 3-Year Government, 1-Year Commercial
